Extra Relay 9015

Ontech Relay 9015 is a wireless accessory for the Ontech GSM 9025 or Ontech GSM 9040 main units. For indoor use. The Ontech Relay 9015 is an additional relay with two alarm inputs and temperature elements. The device can be used for remote control of a 230 V outlet, as alarm unit and for temperature alarm and thermostat.

Functions
Specifications
Documents
  • The device communicates with the main unit with a short-range radio frequency of 2.4 GHz. Up to 7 Ontech GSM Relay can be connected and controlled individually to each main unit.
  • The unit has a 230V outlet that can be switched on and off by any of the main devices such as elements, pumps, etc.. The power supply can be delayed, from 1 second to 99 hours.
  • The unit has a built-in temperature sensor. An external temperature sensor can be connected. This is an optional accessory and is not included. Upon request, the unit reports the temperature.
  • The unit can be set to alert if the temperature exceeds or falls below a preset temperature.
  • The unit can be used as a thermostat if one element is connected to the 230 V socket.
  • The device has two wired alarm inputs. These can be set to end up (Normally Open, NO) or Breaking Function (Normally Closed, NC). Various types of alarms can be connected to these, such as fire alarms, motion detectors, level detectors, etc.

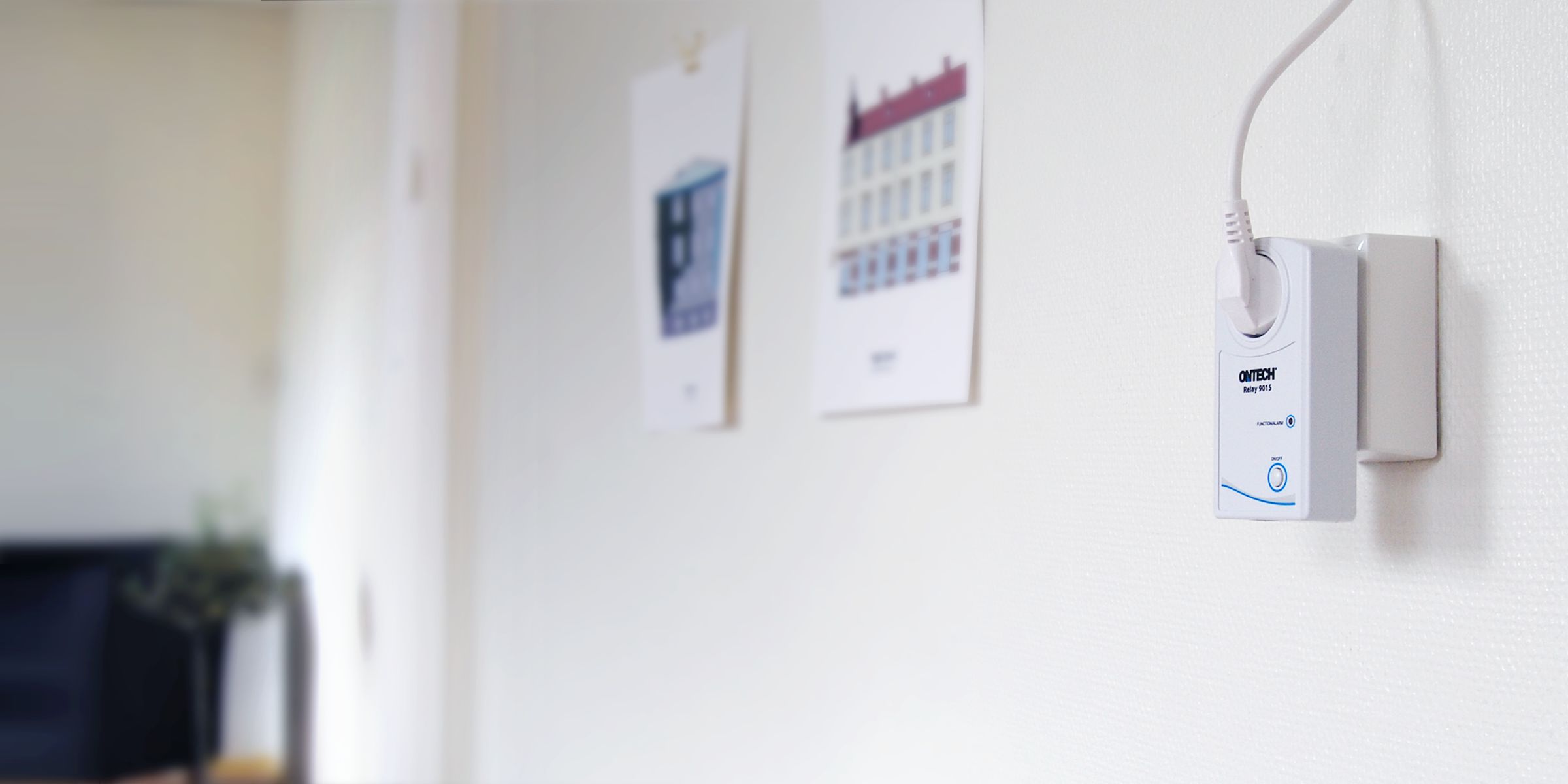

  • Easy to install. Put the device into a wall outlet and it automatically contacts the main unit and registers in the Ontech system.
  • The range is approximately 30 meters in the free field. This is usually enough for a normal sized villa. The devices also function as “repeaters”, ie they forward the radio signal to the main unit from devices further away. This increases the range of the system.

Specifications

Temperature range – 40 to + 55 degrees Celsius
Power consumption Nominalt <0,5W, maximum 4 W.
230V output 230V / 16A
Alarm inputs (digital inputs) 2 st, 3-30 VDC can be set Normally Open or Normally Closed
Internal temperature sensor +/- 2 degrees at 25 grader C och 230V-outputnot activated
Input external temperature sensor OptionalExtern Tempsensor can be connected
Short range radio  2,4 GHz. Output power1 mW, range ca 30 meters in free field
Weight 180 gram
Size (without plug)  135*73*35 mm
Approvals Fulfills all EU requirements and is CE marked.



Documents

Product Sheet Product sheet Ontech Relay 9015
Quick start Guide Quick Start Guide Ontech Relay 9015
